09-15 CTS-V Front K-Member/Subframe (OEM Replacement)

from $1,500.00

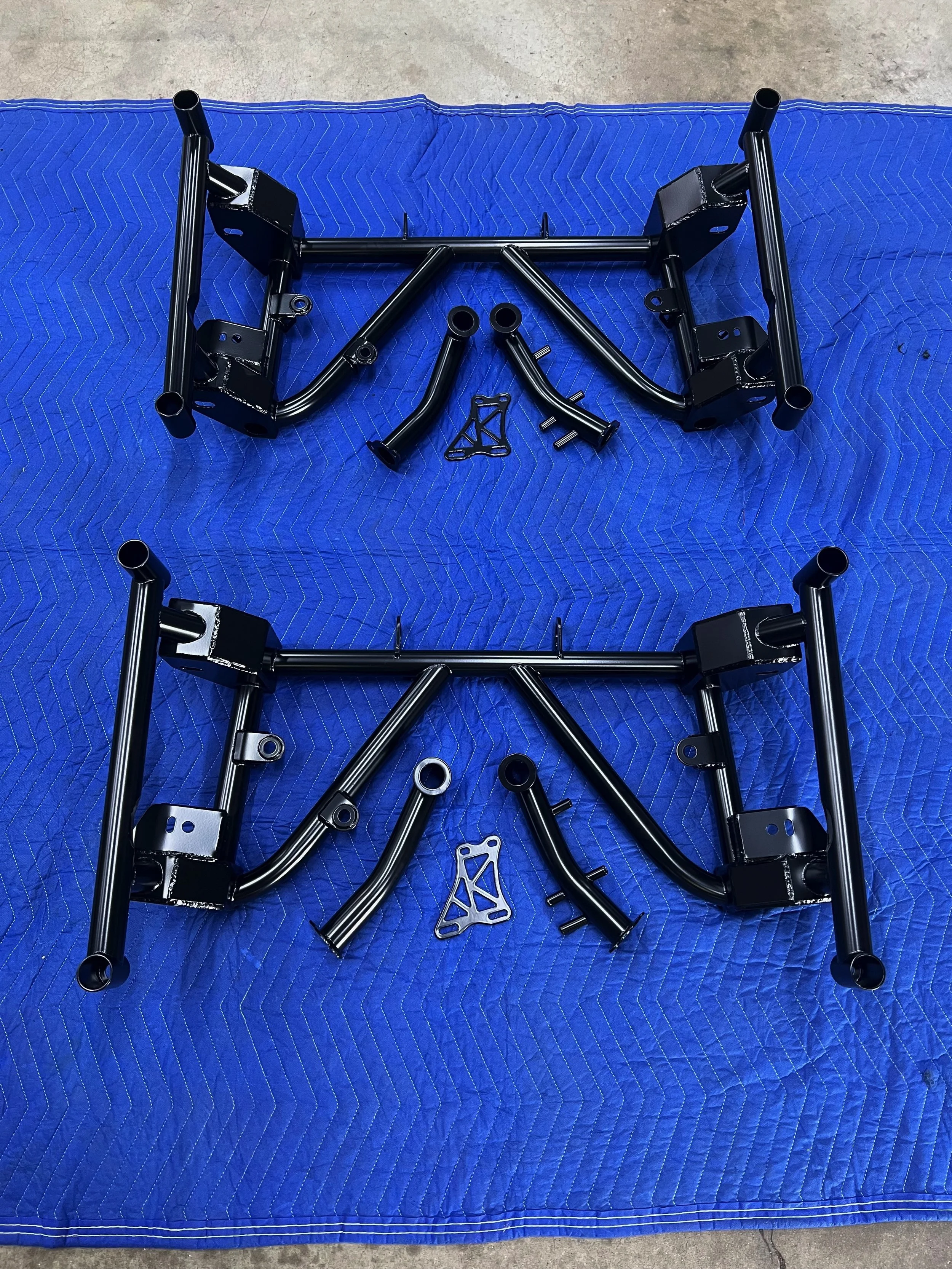

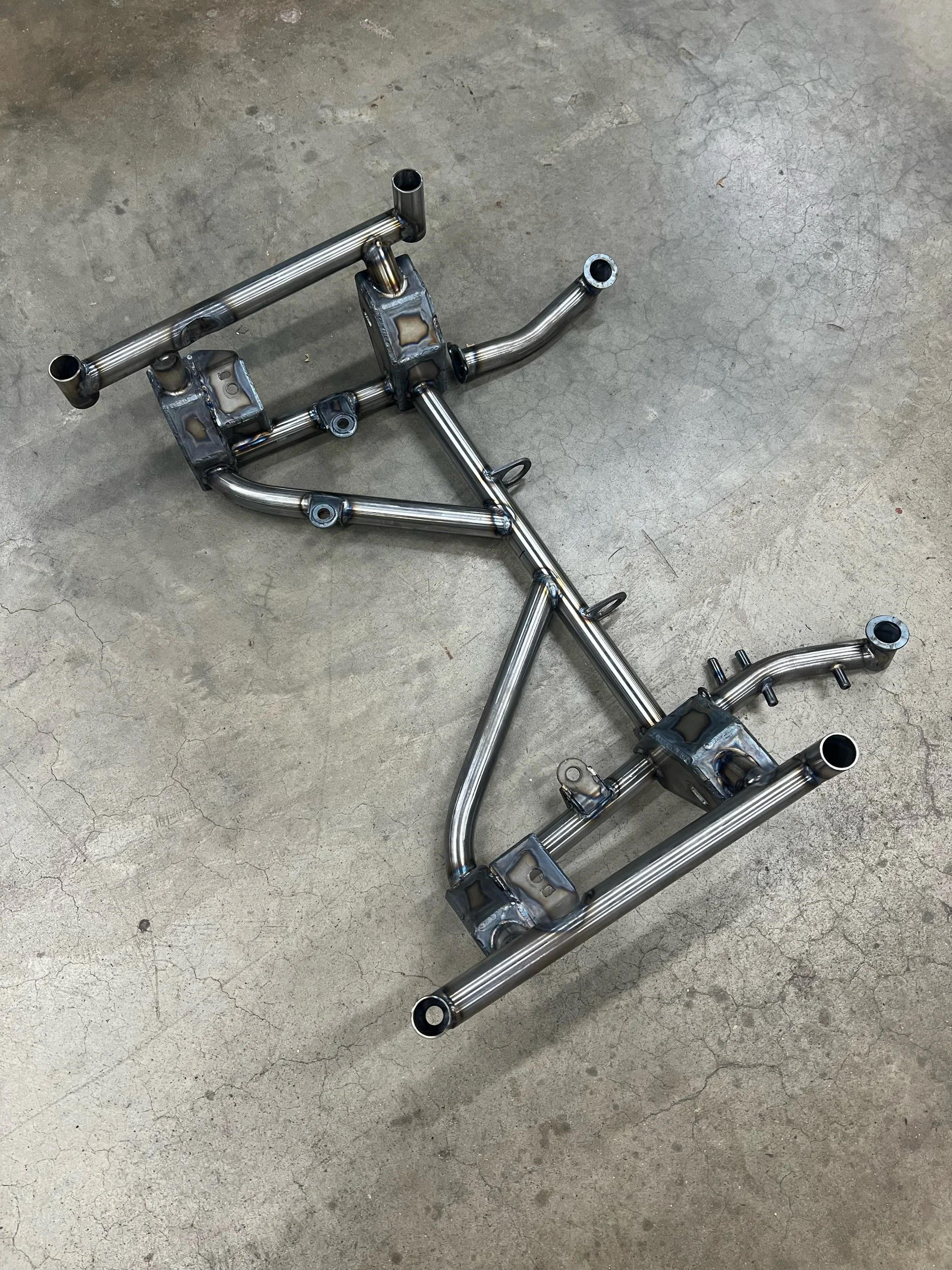

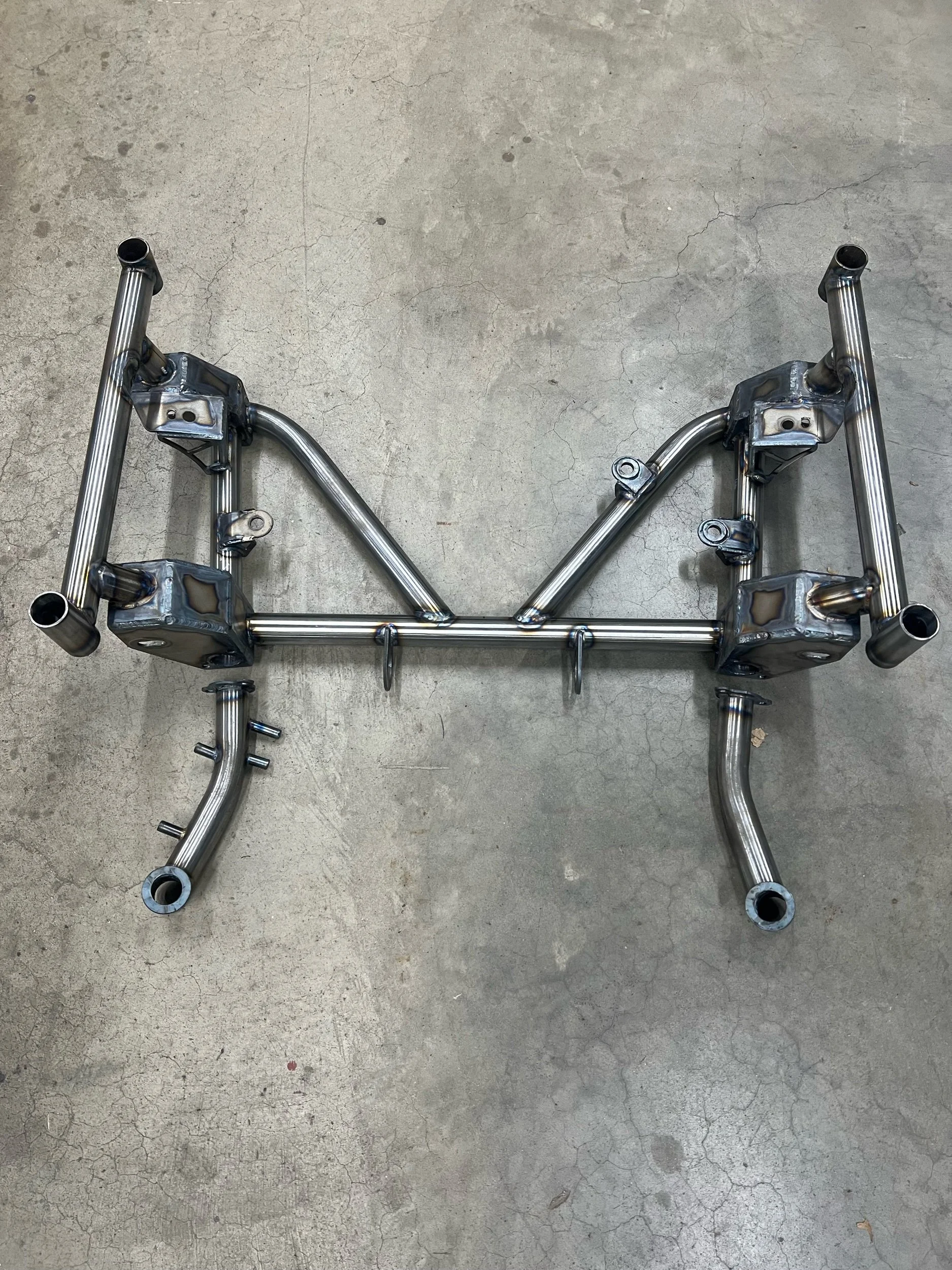

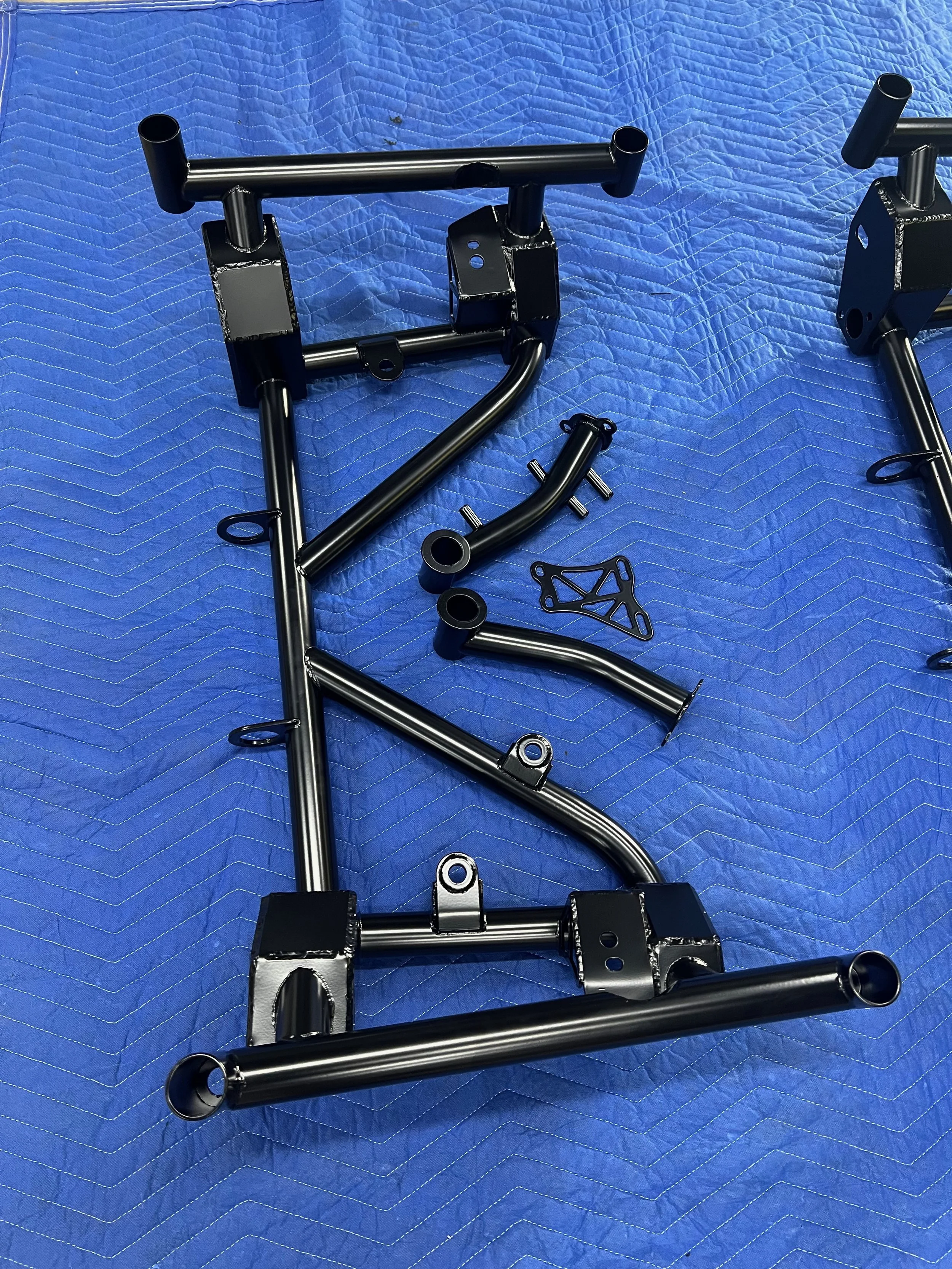

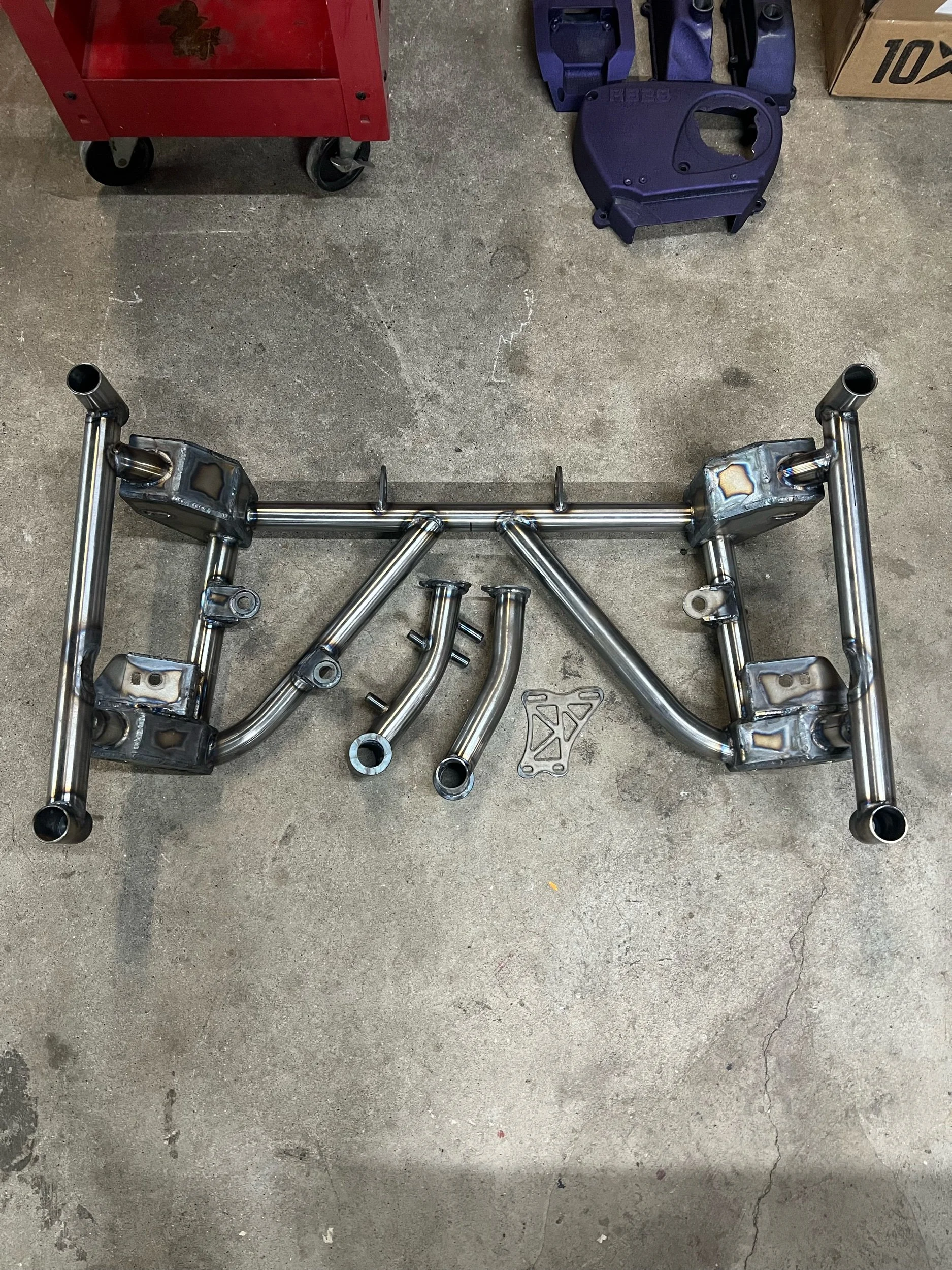

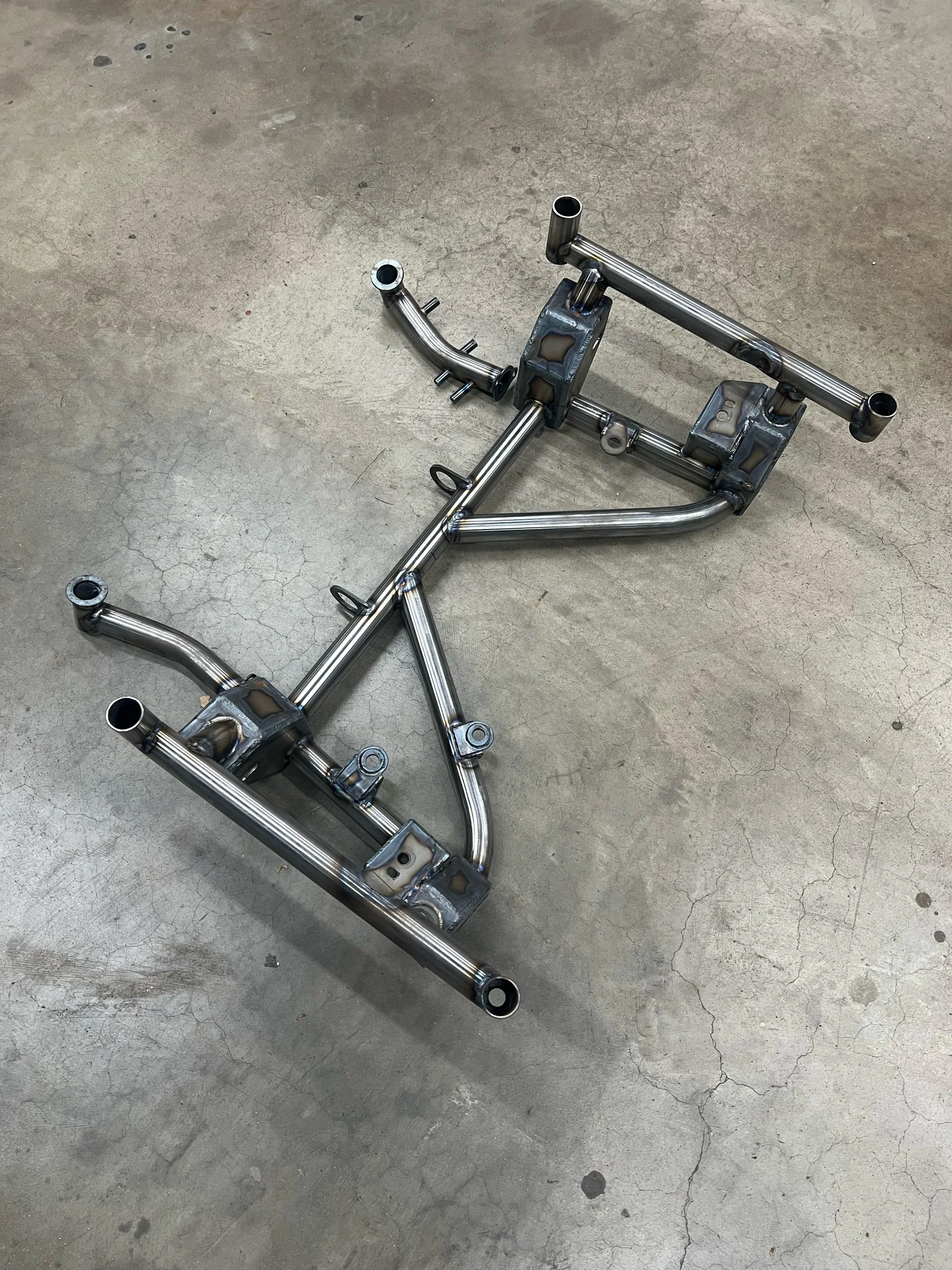

V2 CTS-V Front Subframe — Built In-House at ScroggsFab

The wait is finally over. Our V2 CTS-V front subframes are now available and better than ever. Each one is hand-built right here in-house from 1.5” x .095” wall 4130 chromoly tubing and .125” chromoly plate. They’re built for strength, precision, and clearance — not mass production.

This is a direct OEM replacement that bolts right up using all factory mounting points, so installation is straightforward. The tubular design opens up a ton of space in the engine bay for bigger turbos, exhaust systems, and easier service access. You’ll also drop some serious weight — this subframe weighs about 28 lbs, compared to the factory aluminum version at roughly 50 lbs with the sway bar attached.

Features

  • OEM replacement — bolts right to factory mounting points

  • 28 lbs total weight (OEM is ~50 lbs with sway bar)

  • ABS module and heat exchanger pump provisions

  • Removable radiator brackets

  • 1.5” tow hooks/tie-downs made from 3/16” chromoly

  • No sway bar provision

  • Removes rear mounts for more clearance with low-mount turbo setups

  • Compatible with Creative Steel motor mounts (OEM mounts may require modification)

  • TIG welded, fully built in-house

  • Constructed from .095” wall 1.5” chromoly tubing and .125” chromoly plate

  • Powder coated black — custom colors available by request (additional cost may apply)

Important Info
These subframes are built to order — every single one is hand-fabricated here at ScroggsFab. Lead time is typically 5–6 weeks, depending on workload.

Please be patient — these are flying out as fast as we can build them, and quality takes time. Shipping will be calculated and charged once your order is complete.

All fabrication sales are final and non-refundable.
